Metasploit Scanning

• Executando varredura simples:

 msf > use auxiliary/scanner/portscan/tcp
msf  auxiliary(tcp) > set RHOSTS 192.168.1.108
RHOSTS => 192.168.1.108
msf  auxiliary(tcp) > set PORTS 1-4000
PORTS => 1-4000
msf  auxiliary(tcp) > set THREADS 30
THREADS => 30
msf  auxiliary(tcp) > run

[*] 192.168.1.108:23 - TCP OPEN
[*] 192.168.1.108:25 - TCP OPEN
[*] 192.168.1.108:22 - TCP OPEN
[*] 192.168.1.108:21 - TCP OPEN
[*] 192.168.1.108:53 - TCP OPEN
[*] 192.168.1.108:80 - TCP OPEN
[*] 192.168.1.108:139 - TCP OPEN
[*] 192.168.1.108:445 - TCP OPEN
[*] 192.168.1.108:3306 - TCP OPEN
[*] 192.168.1.108:3632 - TCP OPEN
[*] Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed

Bem, vamos explicar:
primeiramente utilizado o módulo de scan TCP, setamos o host alvo através do comando set rhosts, setamos as portas de 1 até 4000, pois a varredura de 65535 portas não é necessário aqui, setamos threads , ou seja, concorrência em 30, vale ressaltar que devemos tomar cuidado, pois podem haver impactos no ambiente, por fim executamos a varredura através do comando run. Caso tenha dúvidas lembre-se que você pode utilizar o comando show options:

msf  auxiliary(tcp) > show options

Module options (auxiliary/scanner/portscan/tcp):

   Name         Current Setting  Required  Description
   ----         ---------------  --------  -----------
   CONCURRENCY  10               yes       The number of concurrent ports to check per host
   FILTER                        no        The filter string for capturing traffic
   INTERFACE                     no        The name of the interface
   PCAPFILE                      no        The name of the PCAP capture file to process
   PORTS        1-4000           yes       Ports to scan (e.g. 22-25,80,110-900)
   RHOSTS       192.168.1.108    yes       The target address range or CIDR identifier
   SNAPLEN      65535            yes       The number of bytes to capture
   THREADS      30               yes       The number of concurrent threads
   TIMEOUT      1000             yes       The socket connect timeout in milliseconds

Bem, a varredura TCP trabalha com a técnica TCP Connect() ou seja, Three-way Handshake (Handshake de três vias) , torna-se de fácil detecção.

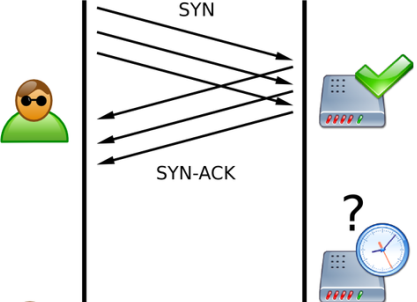

Diante disso vamos utilizar a técnica Syn ou Half Open, meia conexão, pois não completa o Three-way.

msf > use auxiliary/scanner/portscan/syn
msf  auxiliary(syn) > show options

Module options (auxiliary/scanner/portscan/syn):

   Name       Current Setting  Required  Description
   ----       ---------------  --------  -----------
   BATCHSIZE  256              yes       The number of hosts to scan per set
   INTERFACE                   no        The name of the interface
   PORTS      1-10000          yes       Ports to scan (e.g. 22-25,80,110-900)
   RHOSTS                      yes       The target address range or CIDR identifier
   SNAPLEN    65535            yes       The number of bytes to capture
   THREADS    1                yes       The number of concurrent threads
   TIMEOUT    500              yes       The reply read timeout in milliseconds

msf  auxiliary(syn) > set RHOSTS 192.168.1.108
RHOSTS => 192.168.1.108
msf  auxiliary(syn) > set PORTS 1-4000
PORTS => 1-4000
msf  auxiliary(syn) > set THREADS 30
THREADS => 30
msf  auxiliary(syn) > run

[*]  TCP OPEN 192.168.1.108:21
[*]  TCP OPEN 192.168.1.108:22
[*]  TCP OPEN 192.168.1.108:23
[*]  TCP OPEN 192.168.1.108:25
[*]  TCP OPEN 192.168.1.108:53
[*]  TCP OPEN 192.168.1.108:80
[*]  TCP OPEN 192.168.1.108:139
[*]  TCP OPEN 192.168.1.108:445
[*]  TCP OPEN 192.168.1.108:3306
[*]  TCP OPEN 192.168.1.108:3632
[*] Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed

Repare que obtivemos o mesmo resultado, porém de forma mais silenciosa.

TCP Connect() – (Handshake de três vias) de fácil detecção

Half Open – Syn Connect – dificulta detecção
